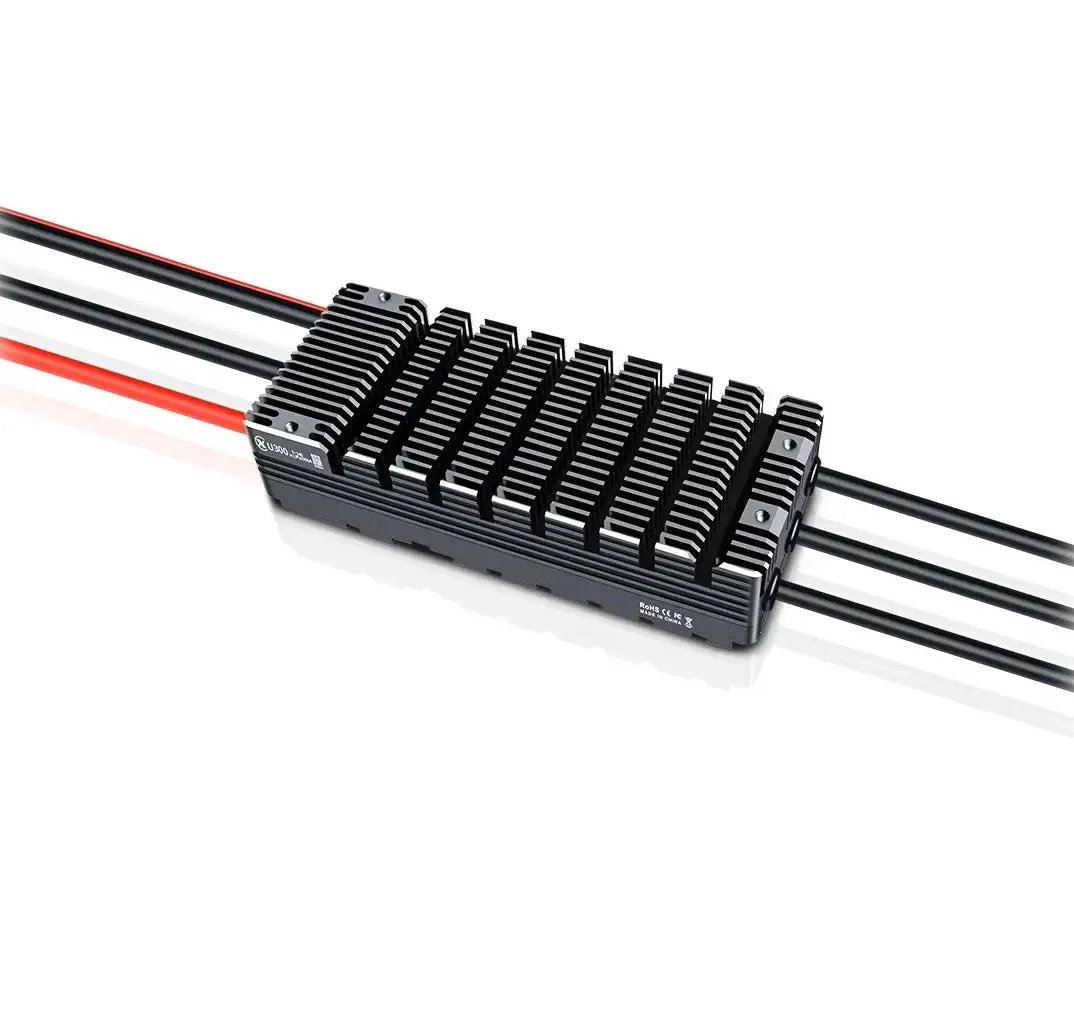

The U300 V2 is a powerful Brushless DC Motor Automatic Electric Speed Controller designed for high-performance applications, such as powered paragliders. With a continuous current capacity of 300A and a peak current of 320A, it is engineered for efficiency under optimal cooling conditions. Brushless DC Motor Automatic Electric Speed Controller supports 5 to 14S LiPo batteries, with a compatible throttle pulse width range of 1050us to 1940us.

Features:

1. Protection Systems: Includes short circuit, voltage, and temperature protections for enhanced safety.
2. Throttle Adjustment: Compatible with 3.3V/5V PWM input signals.
3. Robust Design: IPX4 rating ensures resistance to water and dust.
4. Communication Interface: RS-485 for seamless integration with flight controllers.
5. Size: 176.0 x 73.0 x 42.2 mm
6. Weight: Approximately 645g (excluding wires)
7. Operating Temperature: -25 to 60°C
8. Power/Motor Lines: 7AWG

Package Includes:

1× XC ESC – 12s 300A 48V 13HP Powered Paraglider Brushless DC Motor Automatic Electric Speed Controller

Specification:-
