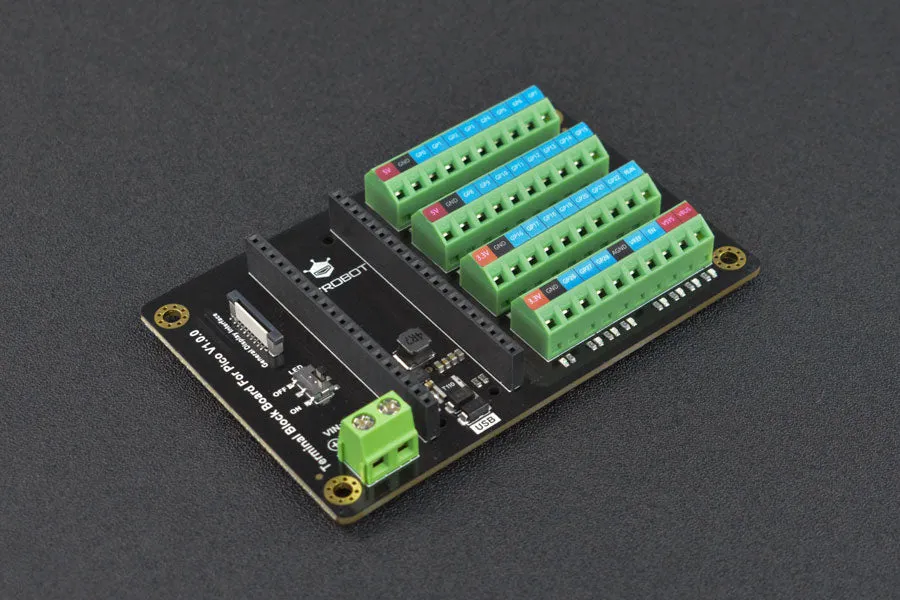

Terminal Block Board for Raspberry Pi Pico
Terminal Block Board for Raspberry Pi Pico
  • Terminal Block Board for Raspberry Pi Pico
Product Details ＋

This terminal expansion board is just right for makers who love using terminal blocks for wiring up their projects!

The board has all pins of broken out into terminal blocks and provides users with additional GDI, 5V output, and 7-24 power input. Each port is labeled with clear silkscreens. All terminal blocks (except GND) have LED indicators for status indicating, which can be turned off using the onboard switch when not required.

Board Overview


I2C Hardware Connection


GDI Hardware Connection

Features:

  • Terminal blocks, make connections more stable and reliable
  • All pins of the main board are broken out
  • External Voltage Input: 7-24V
  • Clear color silkscreens
  • GDI for connecting the display
  • Terminal block status indicator
  • Terminal block status indicator switch

    Specification:

  • External Voltage Input: 7~24V
  • Screen Interface: GDI
  • GPIO x27
  • GND x5
  • 5V Port x2
  • 3.3V Port x2
  • Port LED Indicator x35
  • Port LED Indicator Color: blue
  • Default ON Port Indicator: 3.3V, 5V, VSYS, VBUS, VREF
  • Dimension (Without Package): 61mmx93.5mm/2.40x3.68"

    • Documents:

    • Product Includes:

  • Terminal Block Board for Raspberry Pi Pico x1
    • Terminal Block Board for Raspberry Pi Pico
    • Localstock
    • Overseasstock

    $ 31.84

    $ 31.84

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
