Product Details
Product Attribute Attribute Value
Alternate Mfr Part Number 70995780 ; CC4825W2UH
Contact Form SPST-NO
Current Rating 25 A A
Mounting Type Panel Mount
Relay Type Electromechanical Relay
Series
Termination Screw
Voltage Rating 48/660 VAC VAC
Voltage, Control 4/32 VDC VDC

Overview

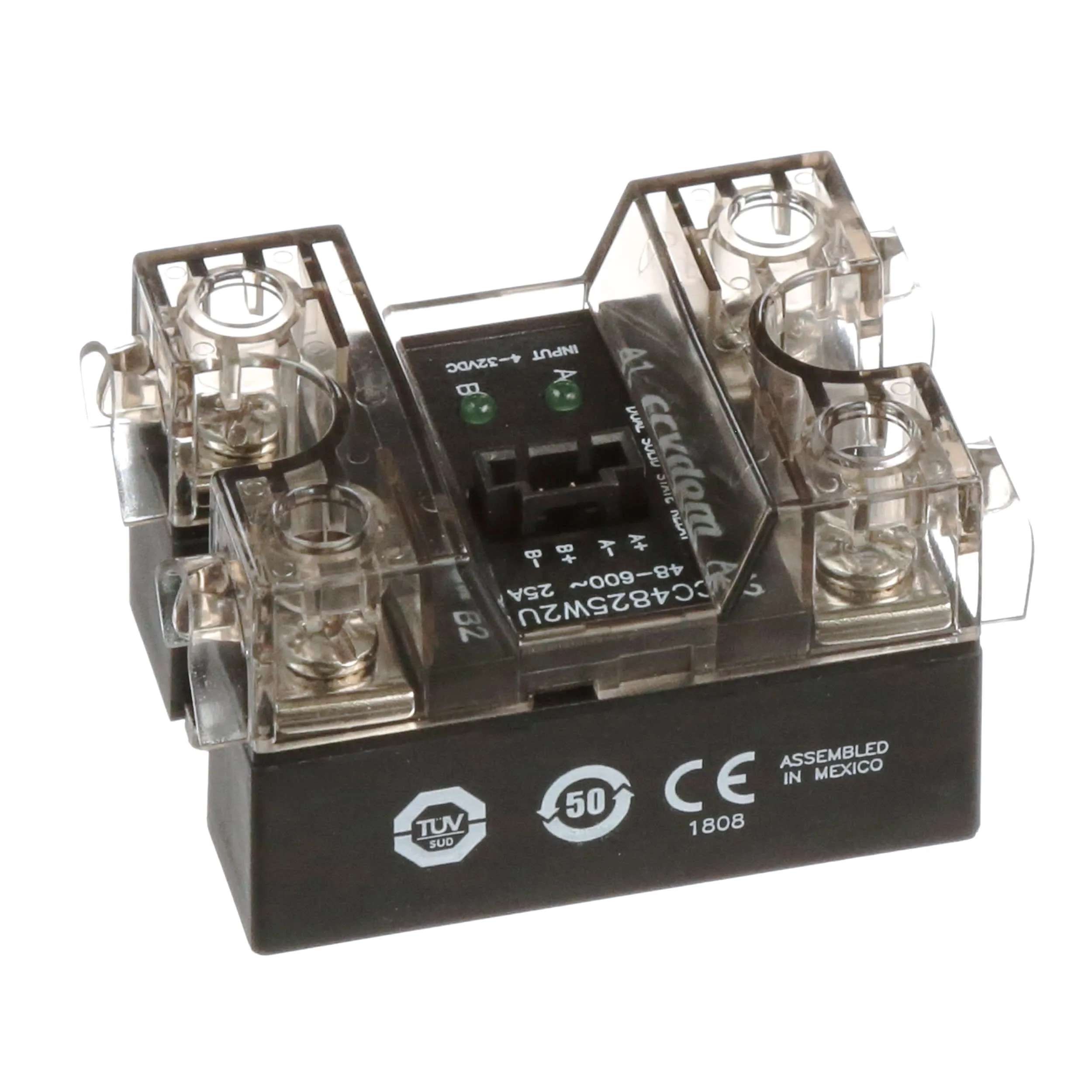

Sensata-Crydom Evolution Dual Series — 25 to 50A, 280/600 VAC | Dual AC Output Solid State Relays:

Crydom’s Evolution Dual family of Panel Mount dual channel AC Solid State Relays is an innovative line which expands upon the classic family of Crydom Dual SSRs, offering an improved mechanical and thermal design along with higher power density. These dual output SSRs are available with ratings of 25 and 50 Amps at 24 to 480 VAC.

Evolution Dual SSRs have 2 outputs controlled by 2 independent DC control inputs, and they are available with different options for input connectors and output terminal configurations, offering great wiring flexibility. A version with integrated protective cover (IP20) is also available.

Features:

  • 25A & 50A Output rating per channel @ 40°C
  • 24 to 280 & 48 to 600VAC Operating voltage
  • 4-32VDC Control input
  • Three input termination options
  • Zero-crossing (resistive loads) output
  • Input status LED indicator for each channel
  • Available with IP20 “Touch-Safe" Covers
  • UL508 Endurance Rating
  • Top-bottom or left-right output screw connections available
  • Zero voltage turn-on
  • SCR output for heavy industrial loads
  • Industry standard panel mount package
  • IP20 Protective cover available
  • Input status LED indicators for each channel
  • CE & RoHS compliant, UL & cUL recognized
  • Sensata - Crydom CC4825W2U
    • DefaultTitle

    $ 82.44
