Non-invasive AC Current Sensor (100A max)
Non-invasive AC Current Sensor (100A max)
  • Non-invasive AC Current Sensor (100A max)
Product Details ＋

What is CT sensors?

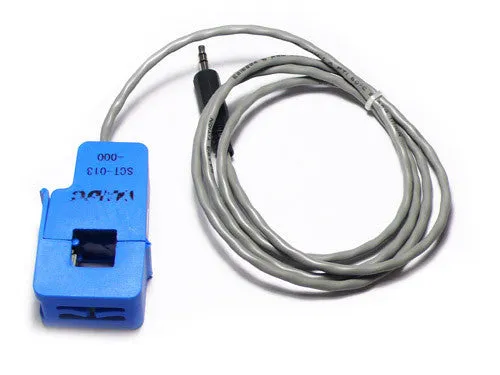

CTs are crucial for measuring AC and are popular for tracking whole-building electricity consumption. The split core model, such as the one pictured, is excellent for DIY applications as it can be simply clipped onto the live or neutral wire without requiring any high voltage electrical work.
Applications
  • Suitable for the current measuring
  • Monitoring and protection of AC motor
  • Lighting equipment
  • Air compressor
Specifications
  • Input Current: 0~100A AC
  • Output Mode: 0~50mA
  • Non-linearity: ±3%
  • Turn Ratio: 100A:0.05A
  • Resistance Grade: Grade B
  • Work Temperature: -25°C ~ ﹢70°C
  • Dielectric Strength(between shell and output): 1000V AC/1min 5mA
  • Leading Wire in Length: 1m
  • Open Size: 13mm x 13mm

Documents

Non-invasive AC Current Sensor (100A max)
  • Localstock
  • Overseasstock

$ 22.35
