Product Details

Overview

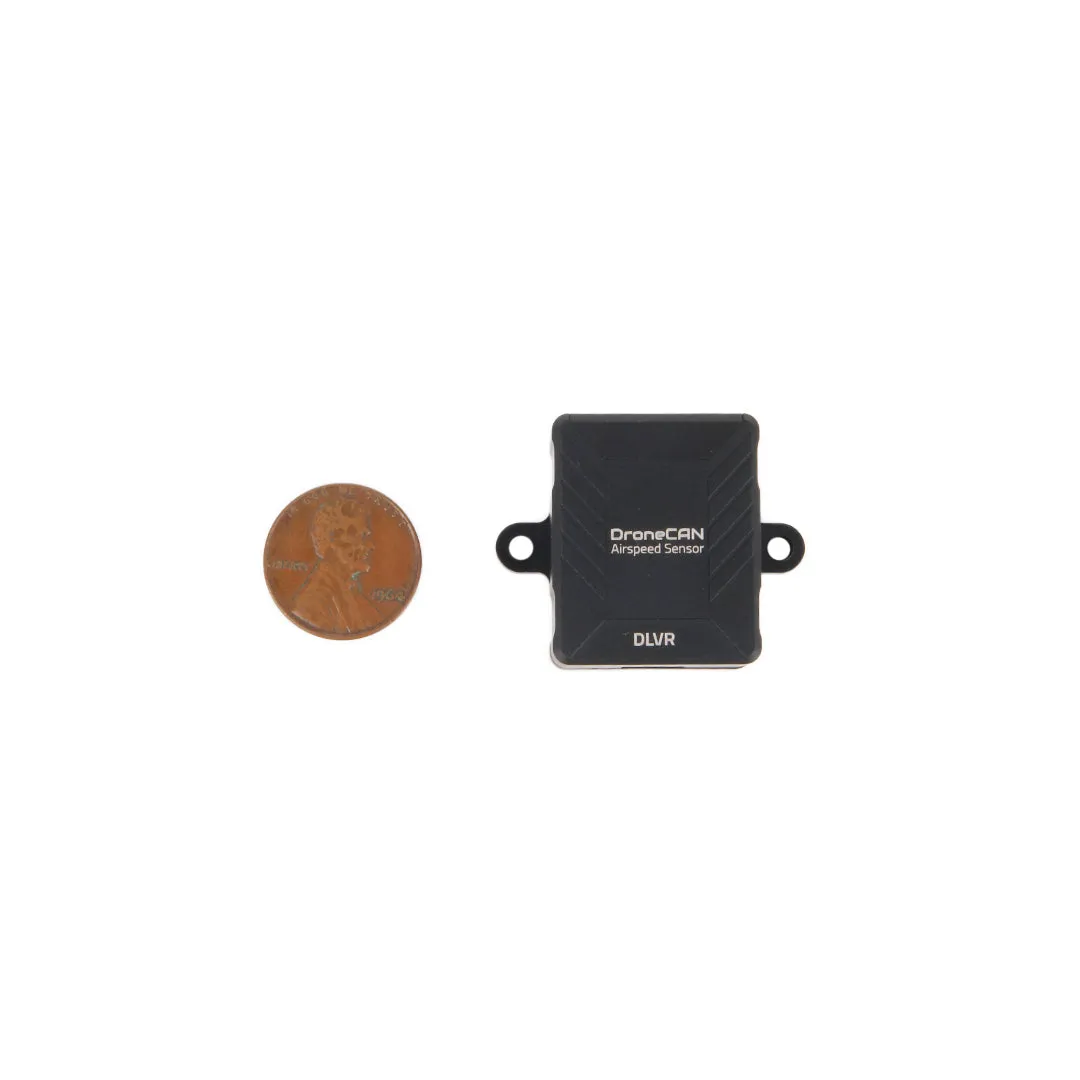

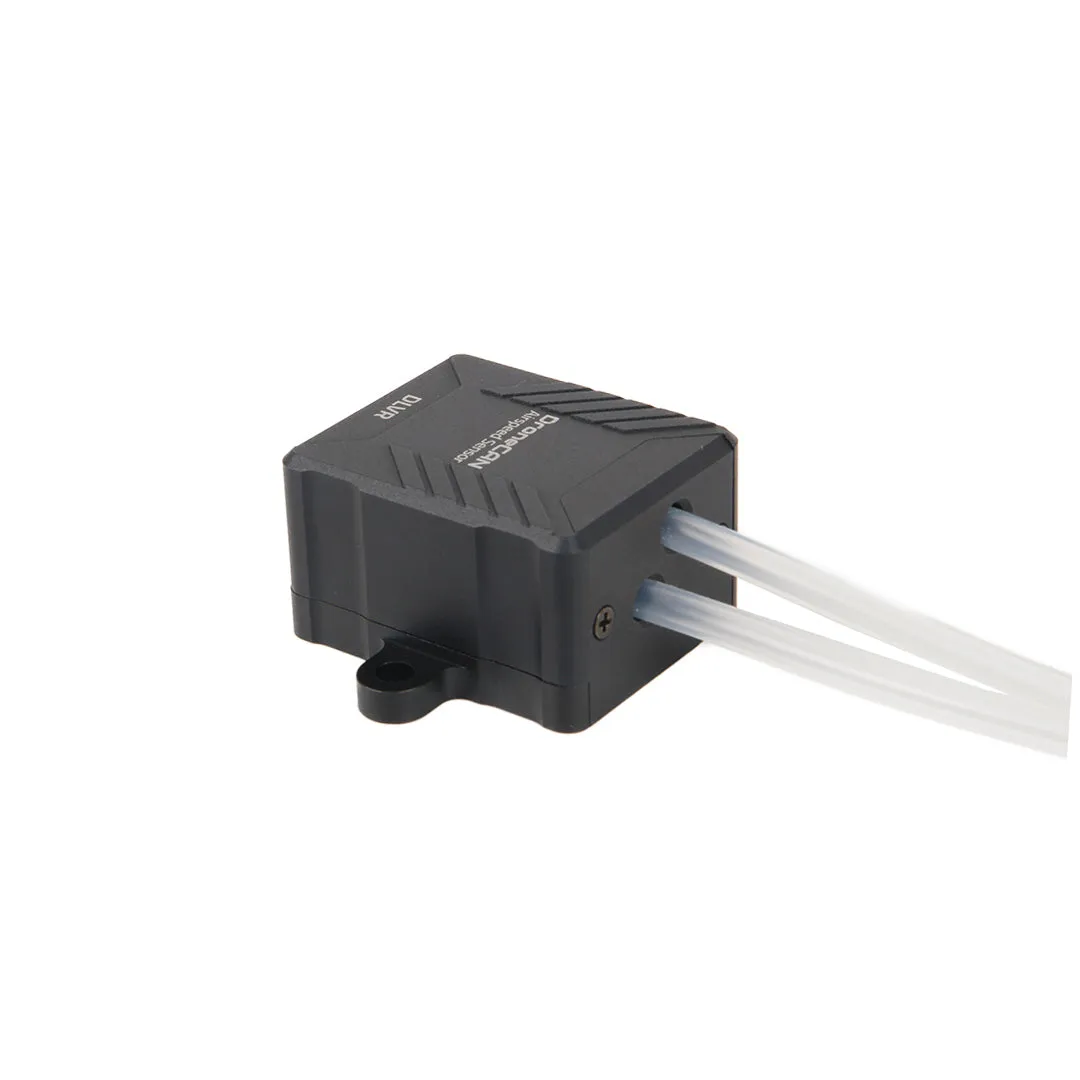

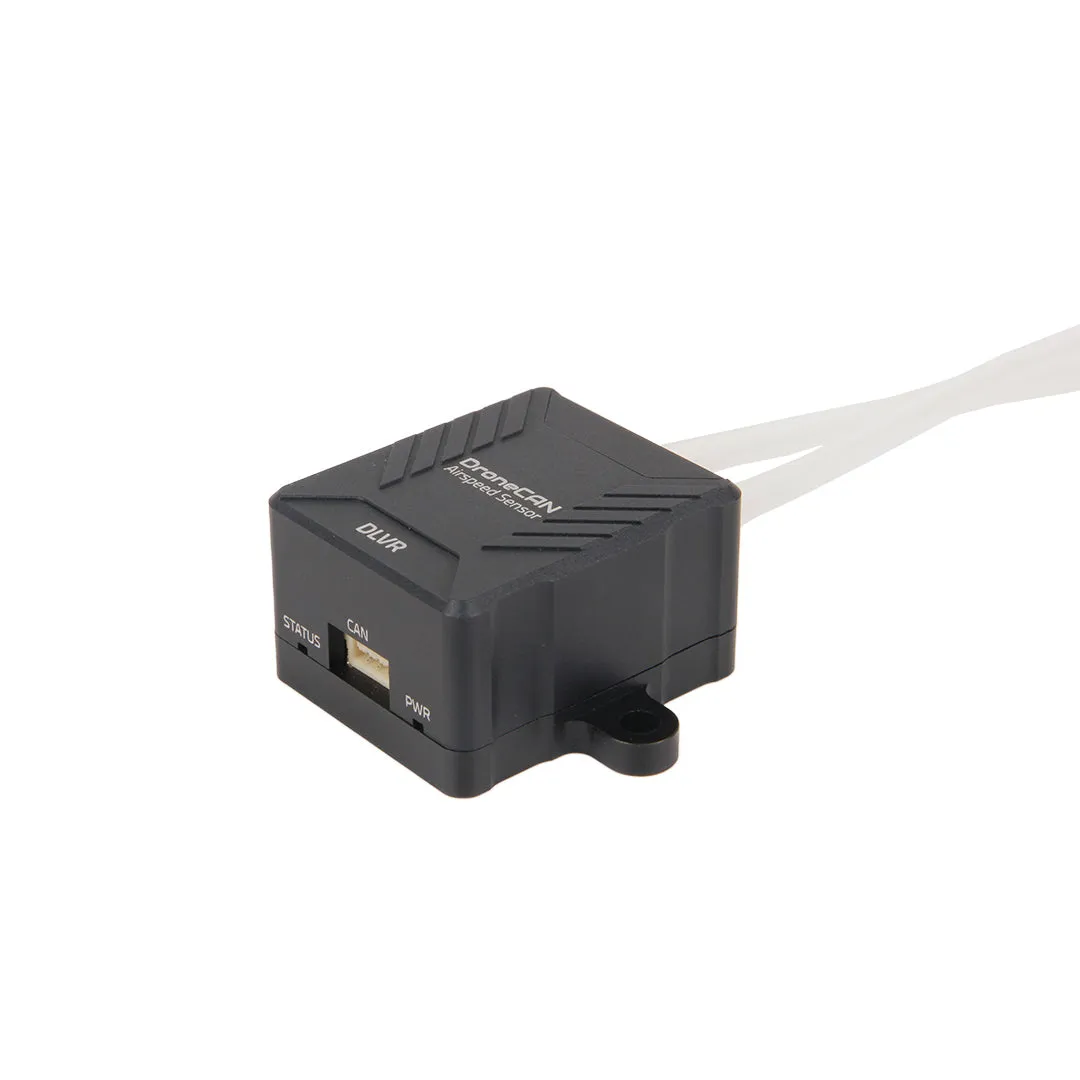

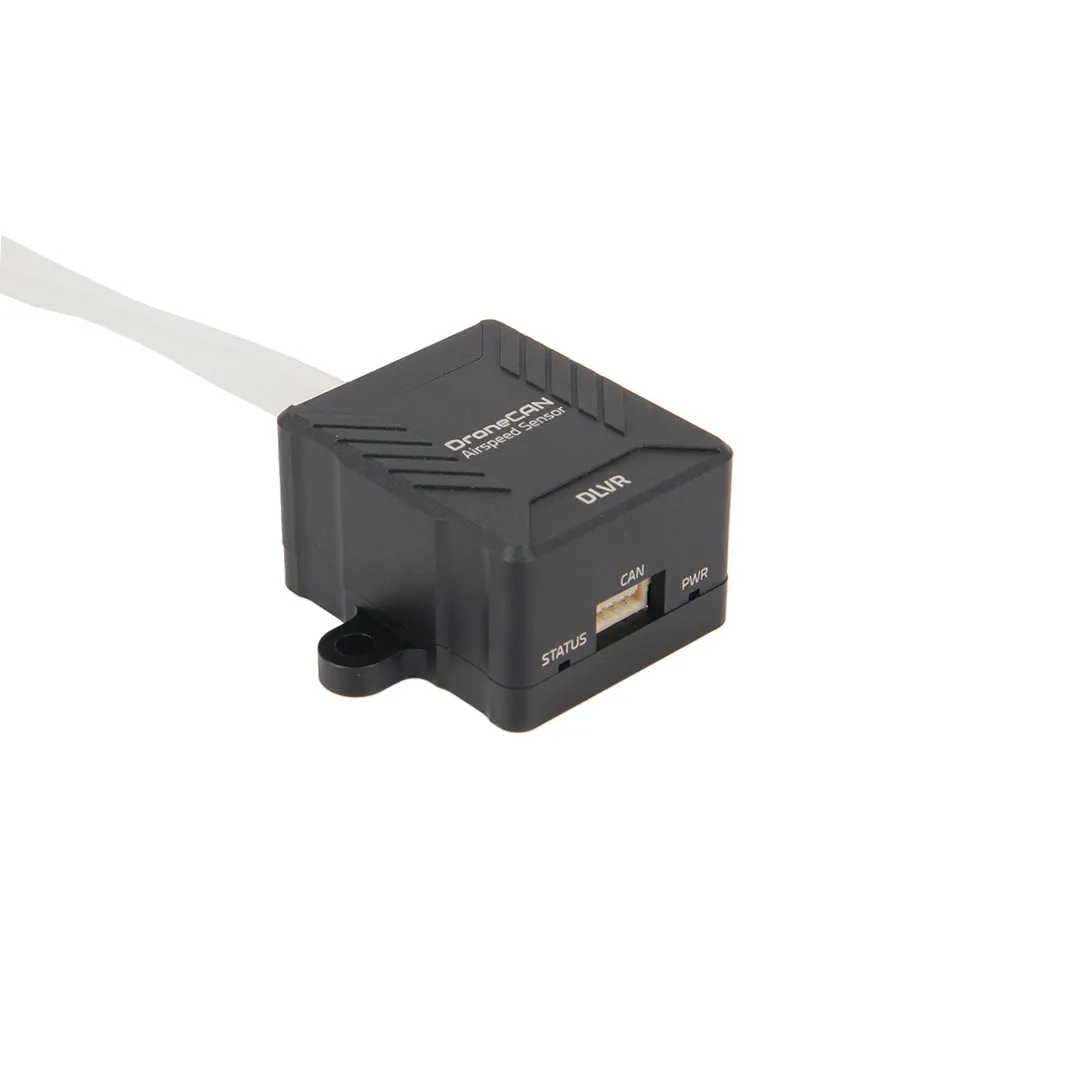

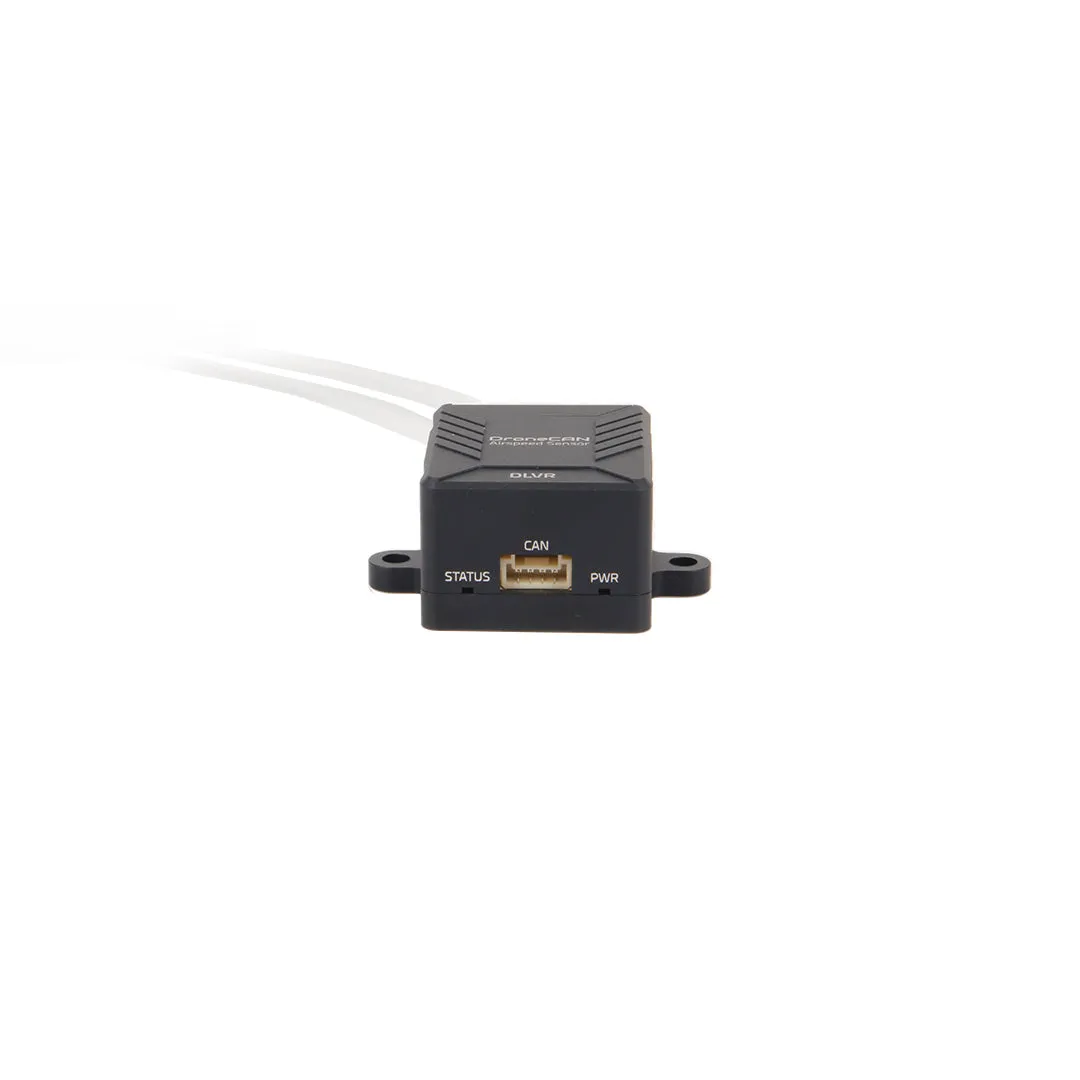

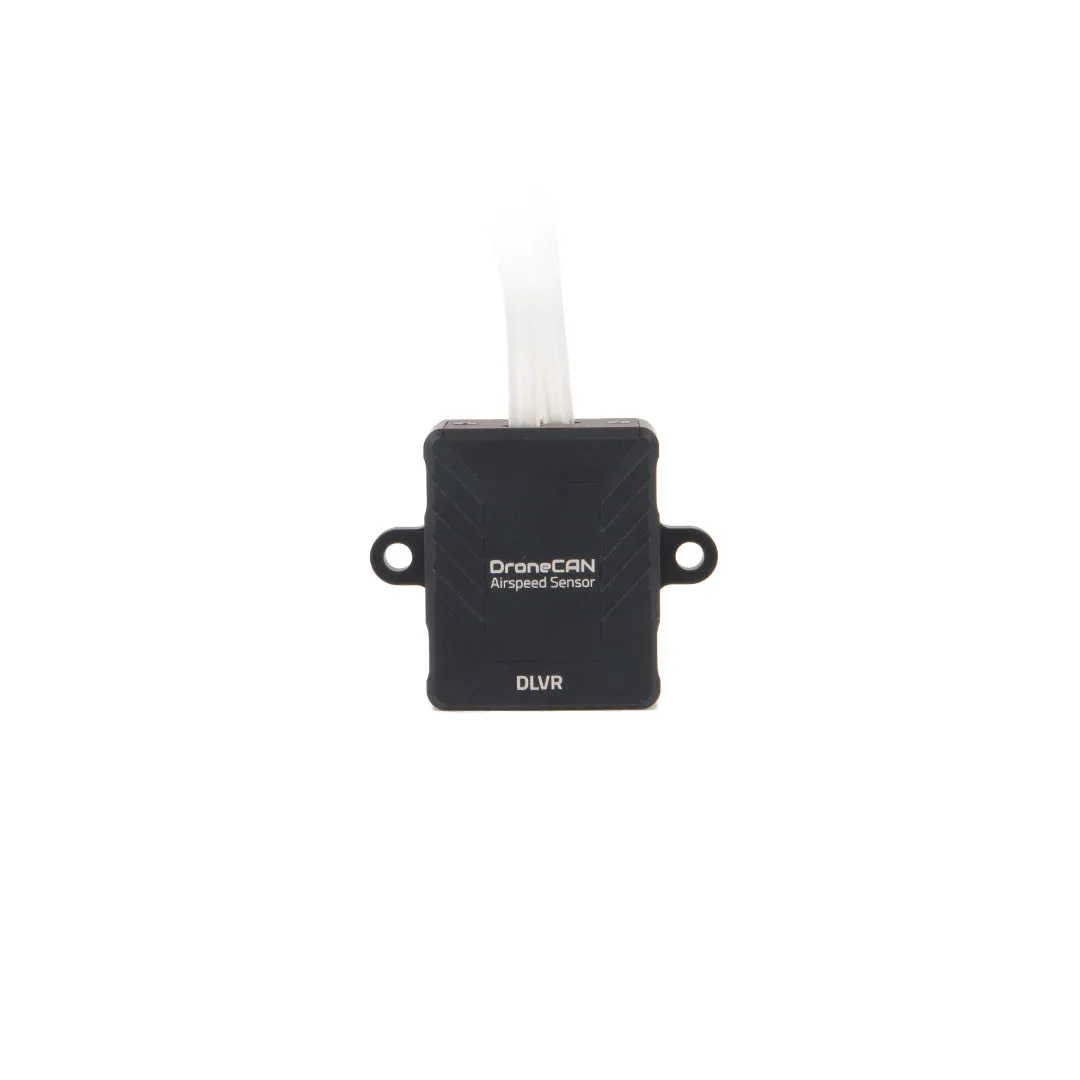

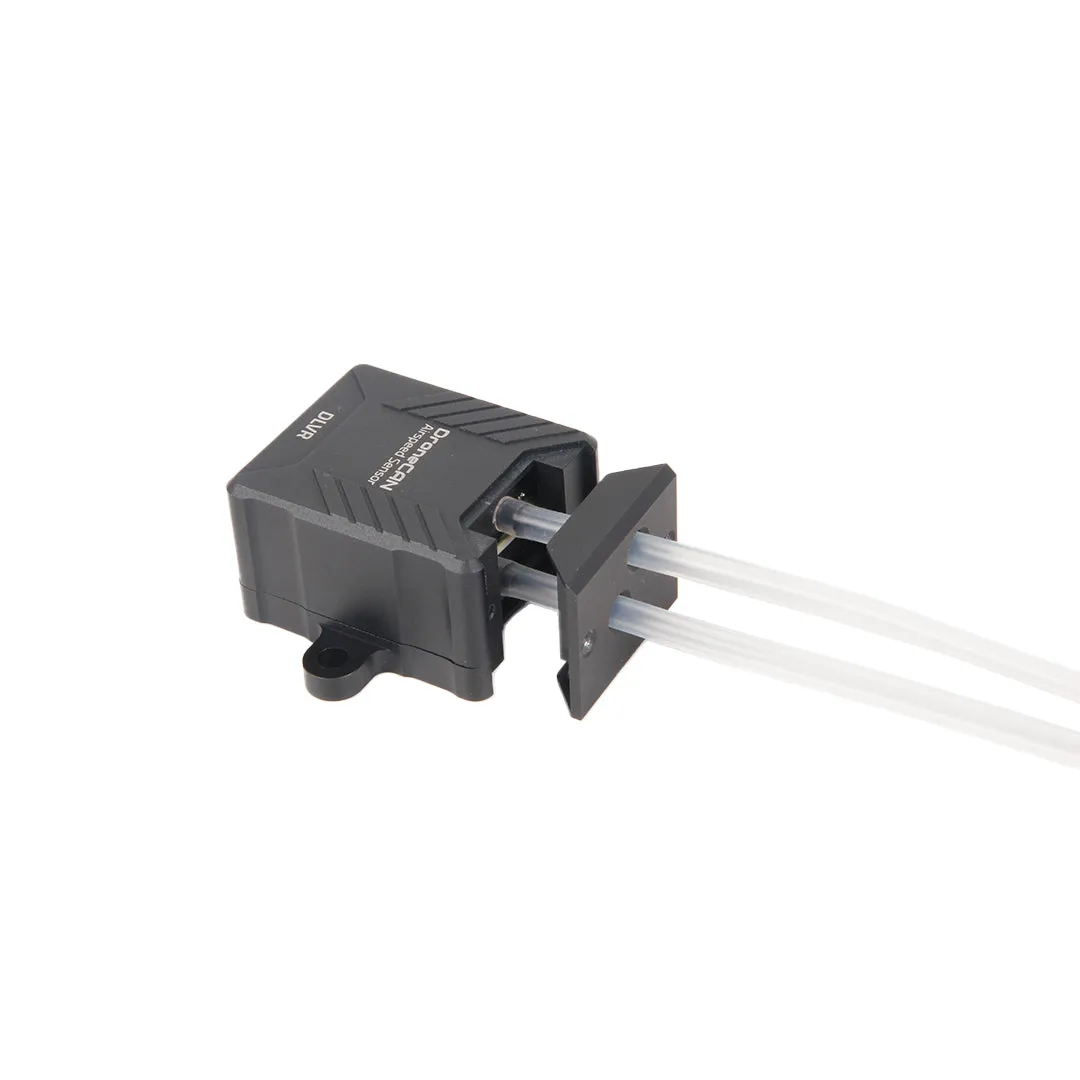

The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.

Features

  •  Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.
  • High-Precision Sensor : Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.
  • High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.
  • DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.
  • Aluminum Shell: Durable and reliable construction

Specifications

  • MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash
  • Sensor:
  • Pressure Range: 2500 Pa
  • Burst Pressure: 75 kPa
  • Airspeed Measurement: 0-226.8 km/h
  • Accuracy: <1.0% Error
  • Firmware: AP-Periph DroneCAN
  • Communication Protocol: DroneCAN
  • Compatible Flight Controllers: Any flight controller with a CAN interface running PX4 or Ardupilot firmware
  • Working Voltage: 4.75~5.25V
  • Current Consumption: ~100mA
  • Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)

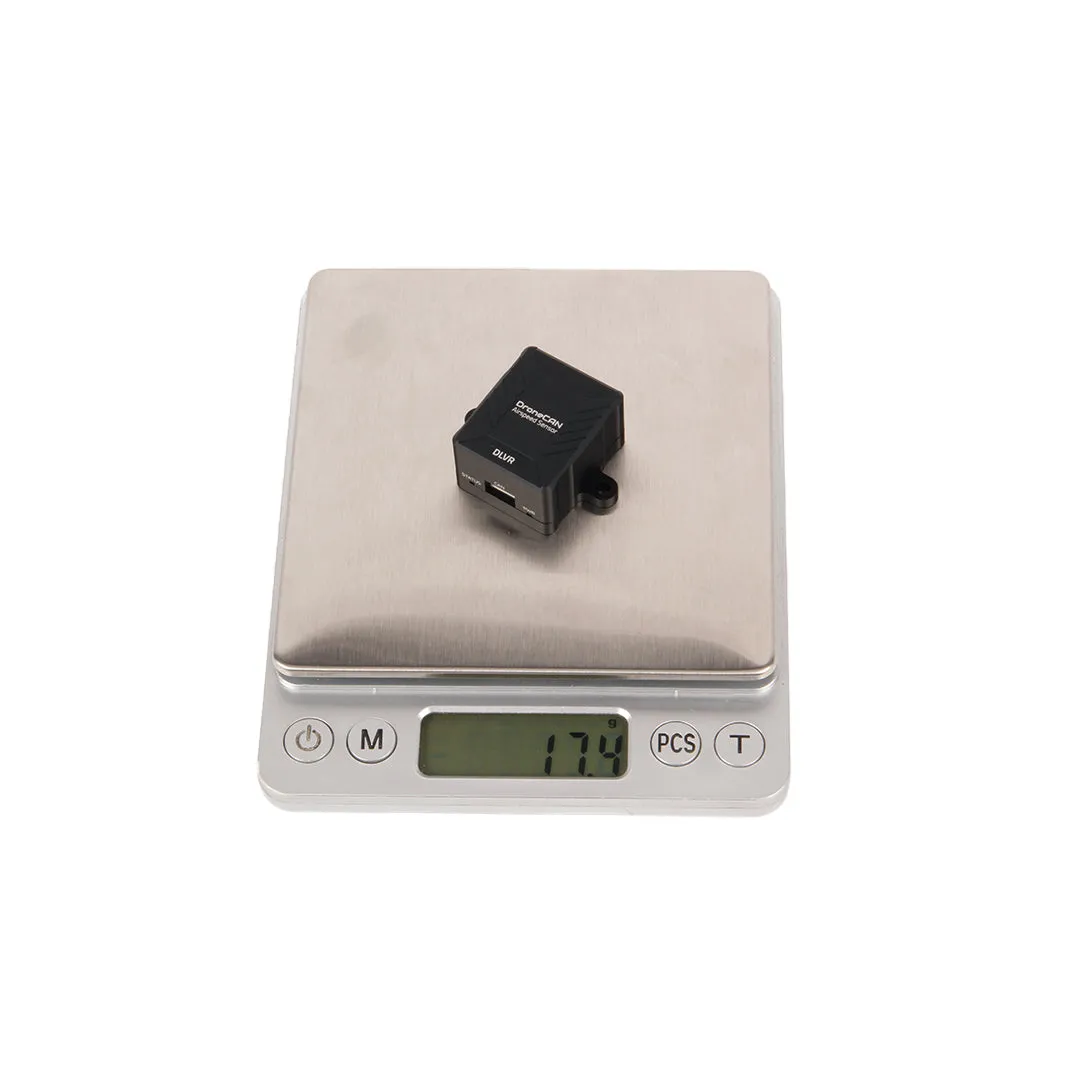

  • Weight: 38.3g (Includes Pitot tube and tubing)
  • Operating Temperature: -20 to 85℃

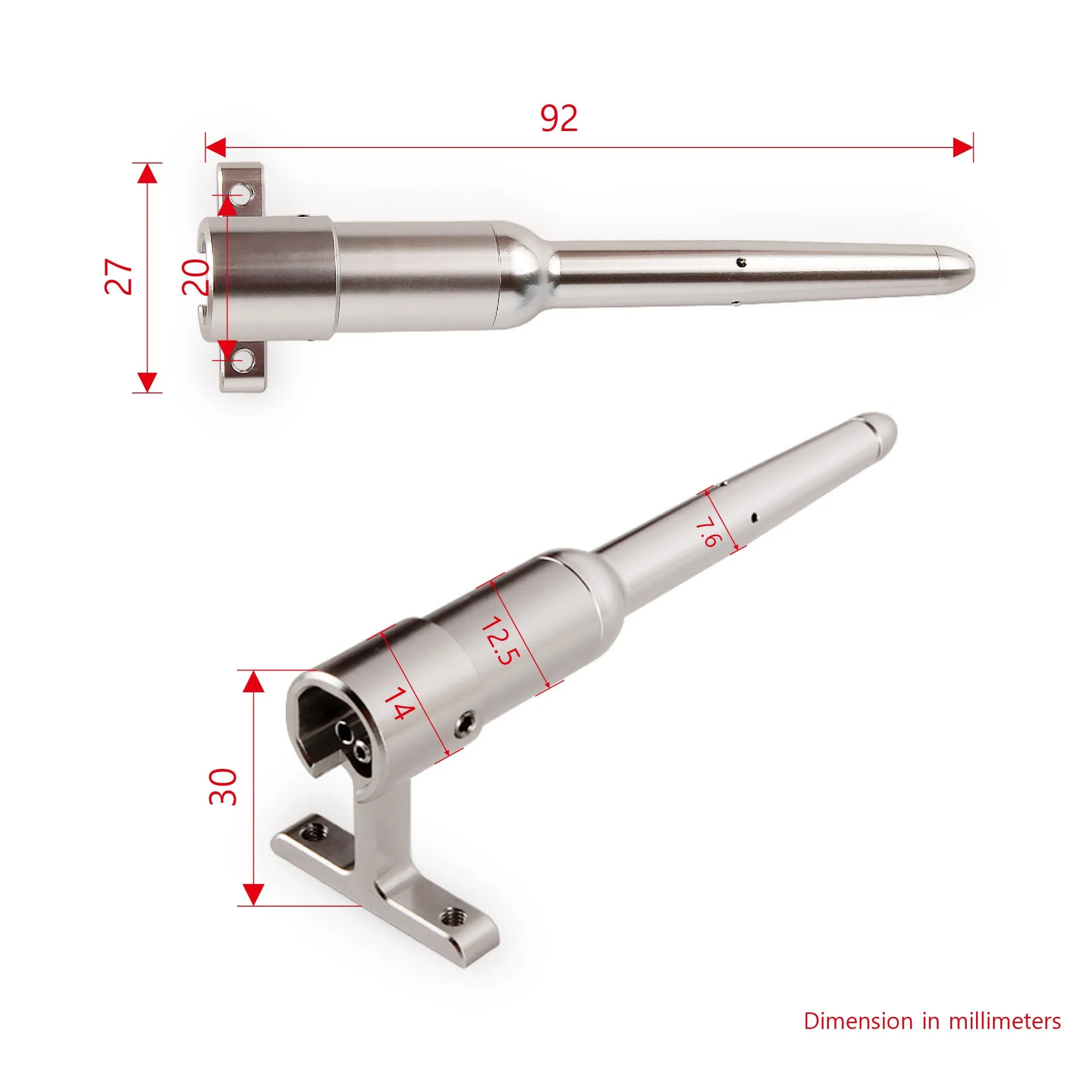

Dimensions

Pinout

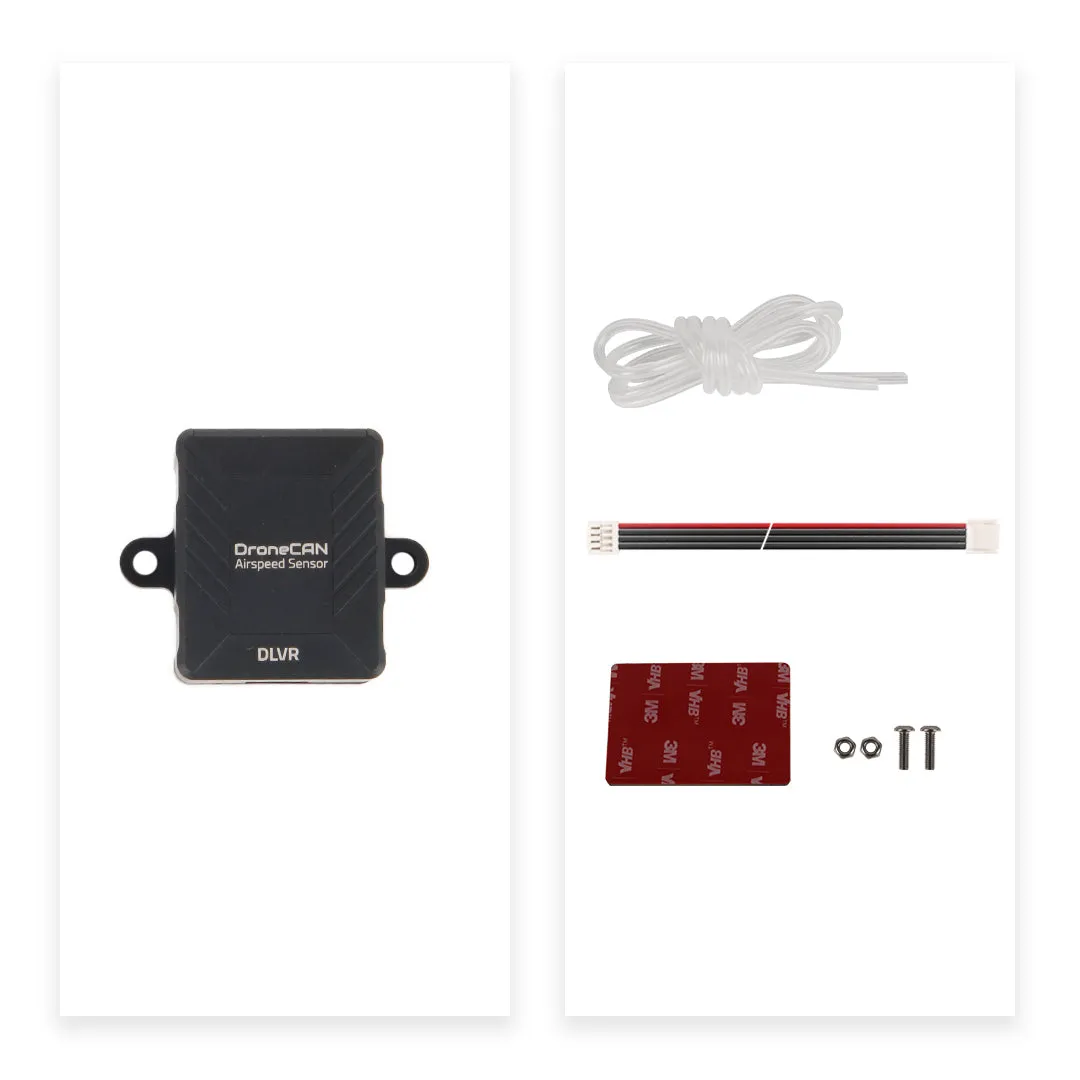

SKU19012 Package Includes:

  • 1x DroneCAN Airspeed Sensor-DLVR
  • 1x Rubber tubing 100cm
  • 1x GH 4P Cable

SKU19013 Package Includes:

  • 1x DroneCAN Airspeed Sensor-DLVR
  • 1x PT40 Pitot Tube
  • 1x Rubber tubing 100cm
  • 1x GH 4P Cable

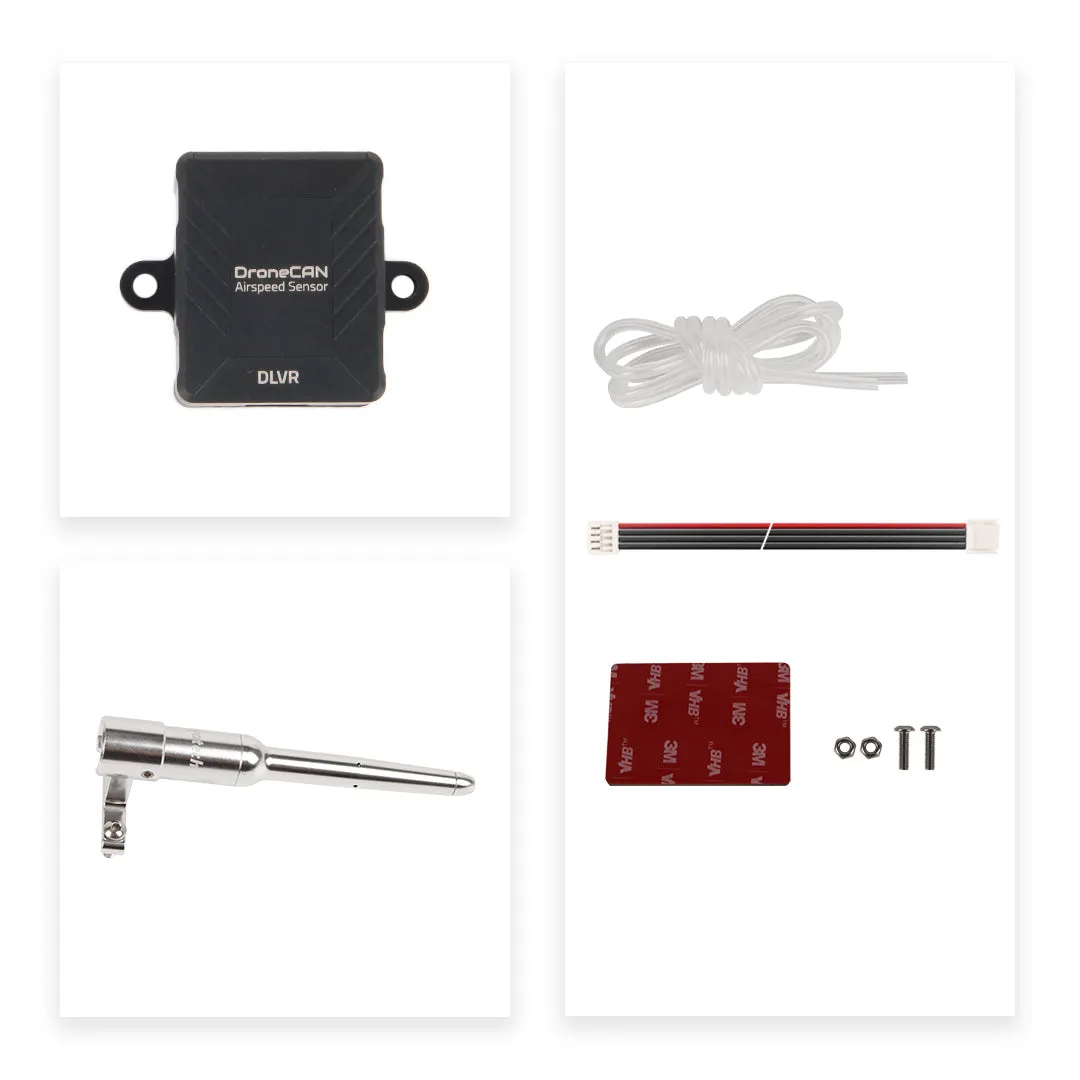

SKU19014 Package Includes:

  • 1x DroneCAN Airspeed Sensor-DLVR
  • 1x PT60 Pitot Tube
  • 1x Rubber tubing 100cm
  • 1x GH 4P Cable

Quick start Guide:

Datasheet:


High Precision DroneCAN Airspeed Sensor - DLVR
  • SensorwPT40PitotTube
  • SensorwPT60PitotTube
  • SensorBoardOnly
  • PT60PitotTubeOnly

$ 71.55

$ 55.04

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
