Product Details
＋

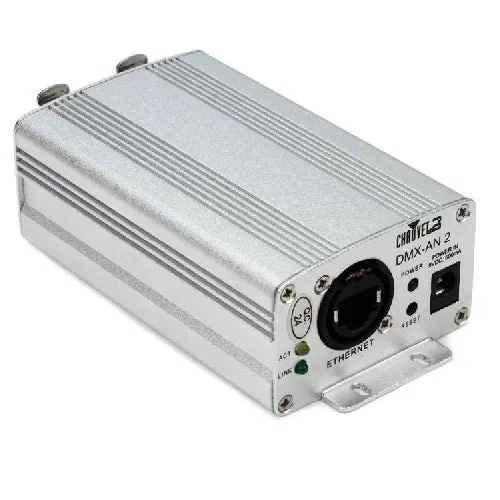

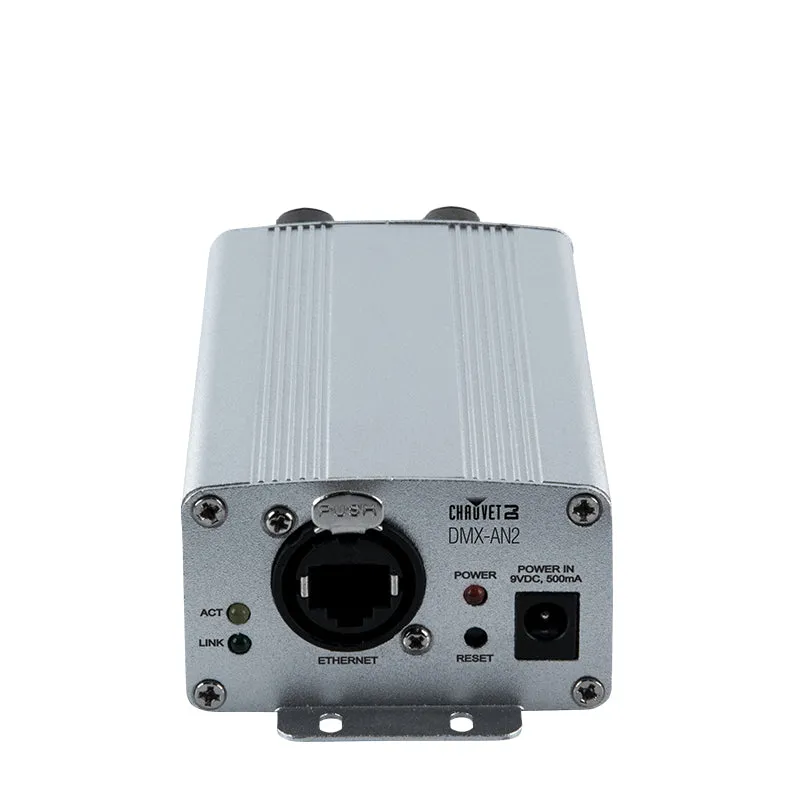

- Multi-purpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
- Optical and electrical isolation is ready for any situation
- No universe/subnet setup with the built-in web based GUI
- Durable Neutrik® etherCON® in/through port ensures reliability
- Automatically redirects the web page if the IP address is changed
- Supports Power over Ethernet (POE) or an external power supply
- Both outputs can be set to either Art-Net or sACN
- Functions as an Art-Net to DMX or DMX to Art-Net interface
- Onboard LED indicators quickly inform status
- Integrated mounting bracket to quickly install into any location
Specifications:
- DMX Channels: 1024
- DMX Connectors: 3- pin XLR
- Control Protocol: Art-Net, DMX, sACN
- Art-Net Version: 3
- Input Voltage (DC): 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Input Voltage (POE): 48V 0.4 A
- Weight: 0.4 lb (0.2 kg)
- Size: 4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm)
