ULTRACP-22T-230 230V CONDENSATE PUMP - ASURITY

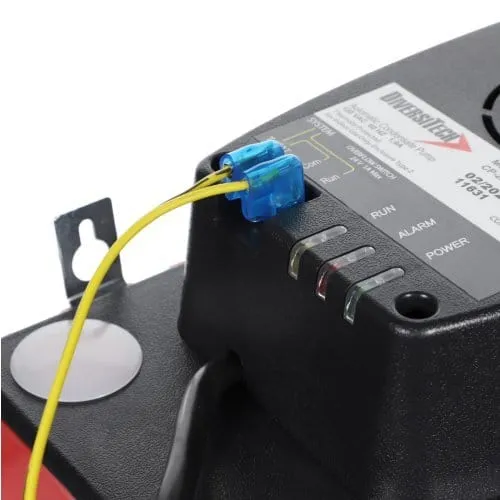

Asurity™ ULTRACP-22T series pumps beat the industry standard of 20’ lift height by 2 feet and comes with innovative features such as: translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. Includes 20 feet of 3/8 inch tubing. Asurity™ - Your Complete System for Condensate Management.

Product Features & Benefits

• Translucent Tank for Easy & Fast Inspection

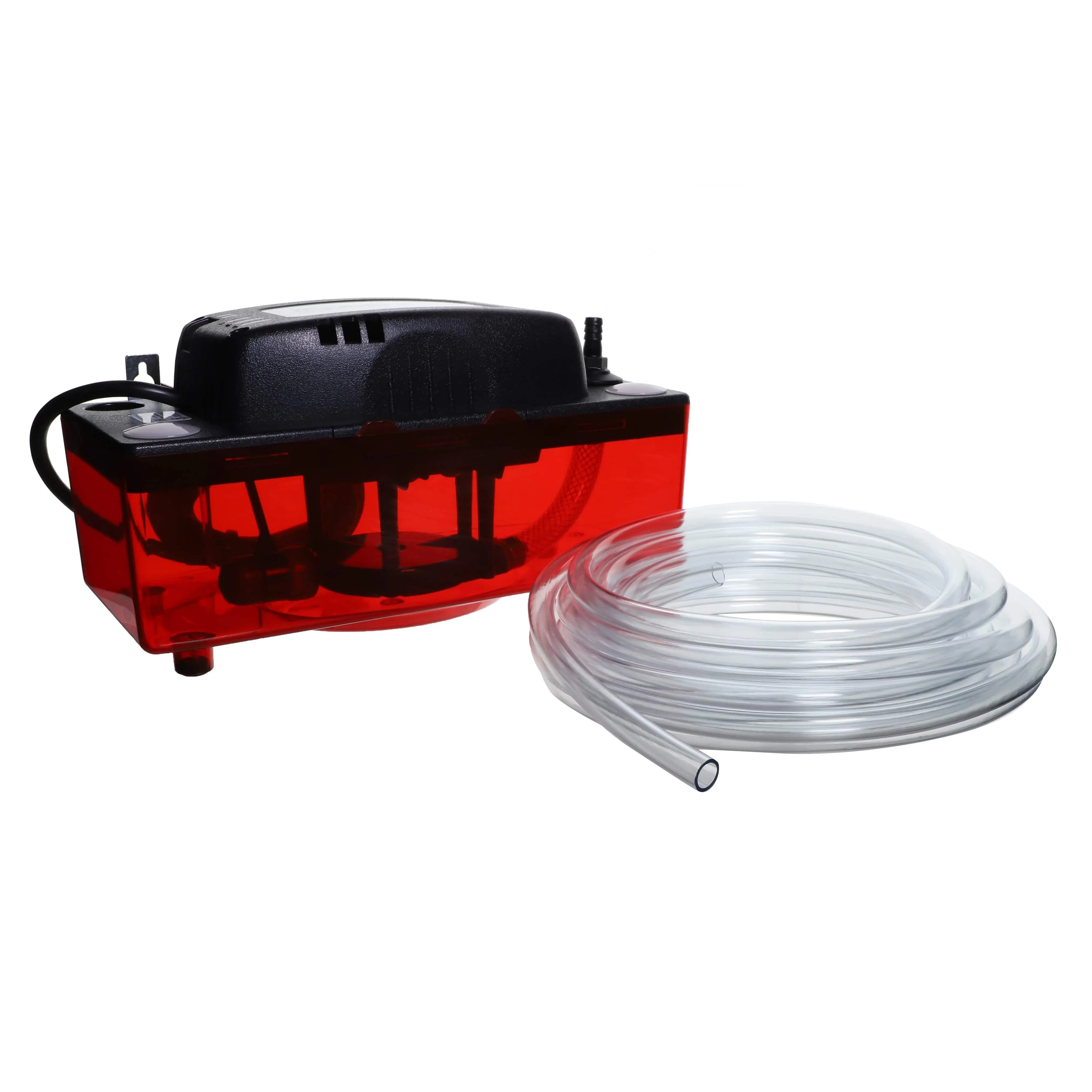

• Includes 20 feet of 3/8 in. discharge tubing

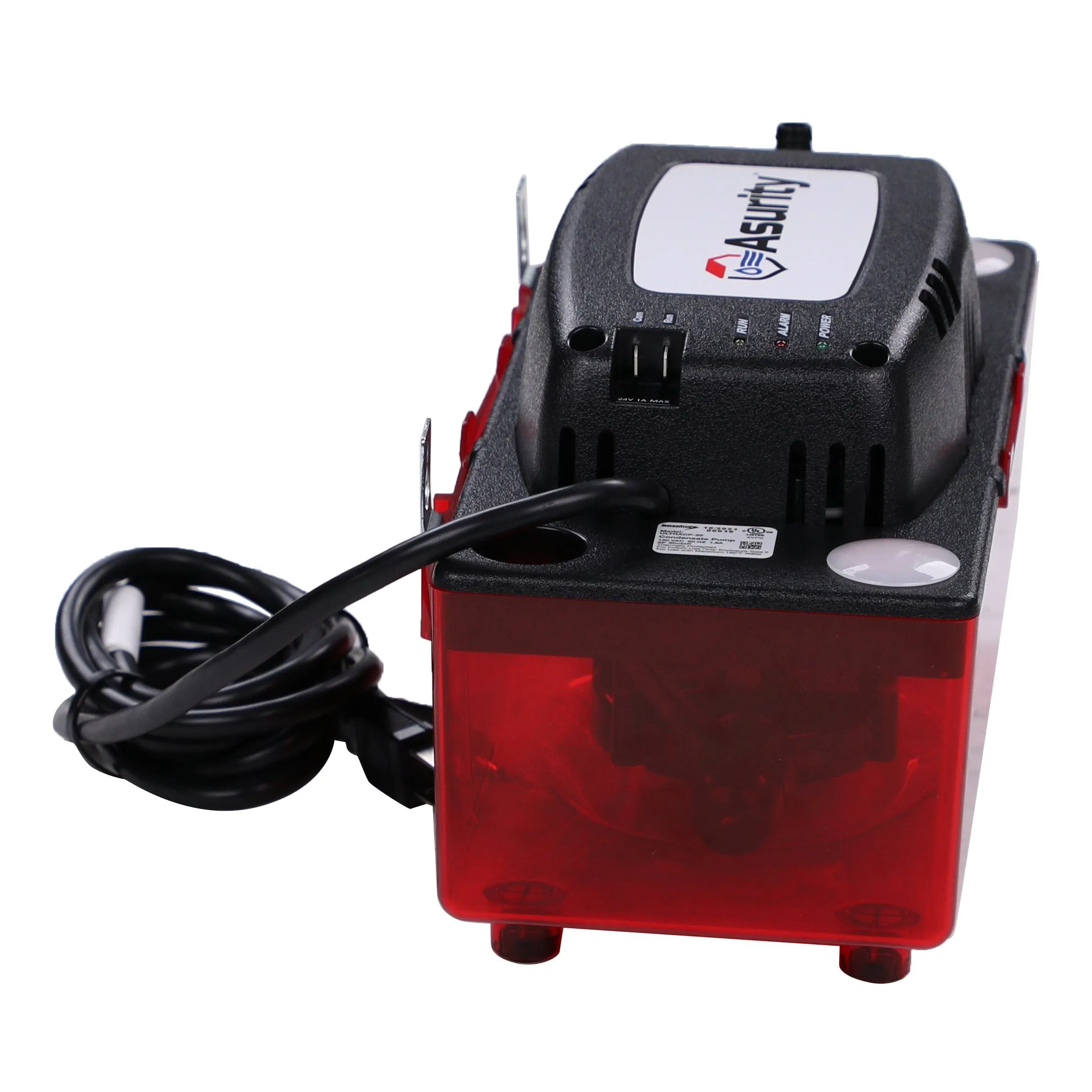

• LED Indicators Confirm Pump Status
• Built-in Safety Overflow Switch
• Removable Check Valve for Easy Cleaning
• Handles Condensate up to 160 Degrees F

Specifications

• Amps: 1.0
• Floatless Sensor: No
• Hertz: 60
• High Level Switch: Yes
• Horsepower: 1/30
• Max Condensate Temp. (Degrees): 160°F
• Max Flow Rate (GPH): 96
• No. of Inlets: 4
• Self-Cleaning: No
• Tank Capacity (Gal.):. 5
• Variable Speed and Lift: No
• Volts: 230

Inclued Accesories

• Instruction booklet
• Metal hang tabs
• 4´remote shutoff leads w/insulated terminals
• Polyethelene inlet covers (3)
