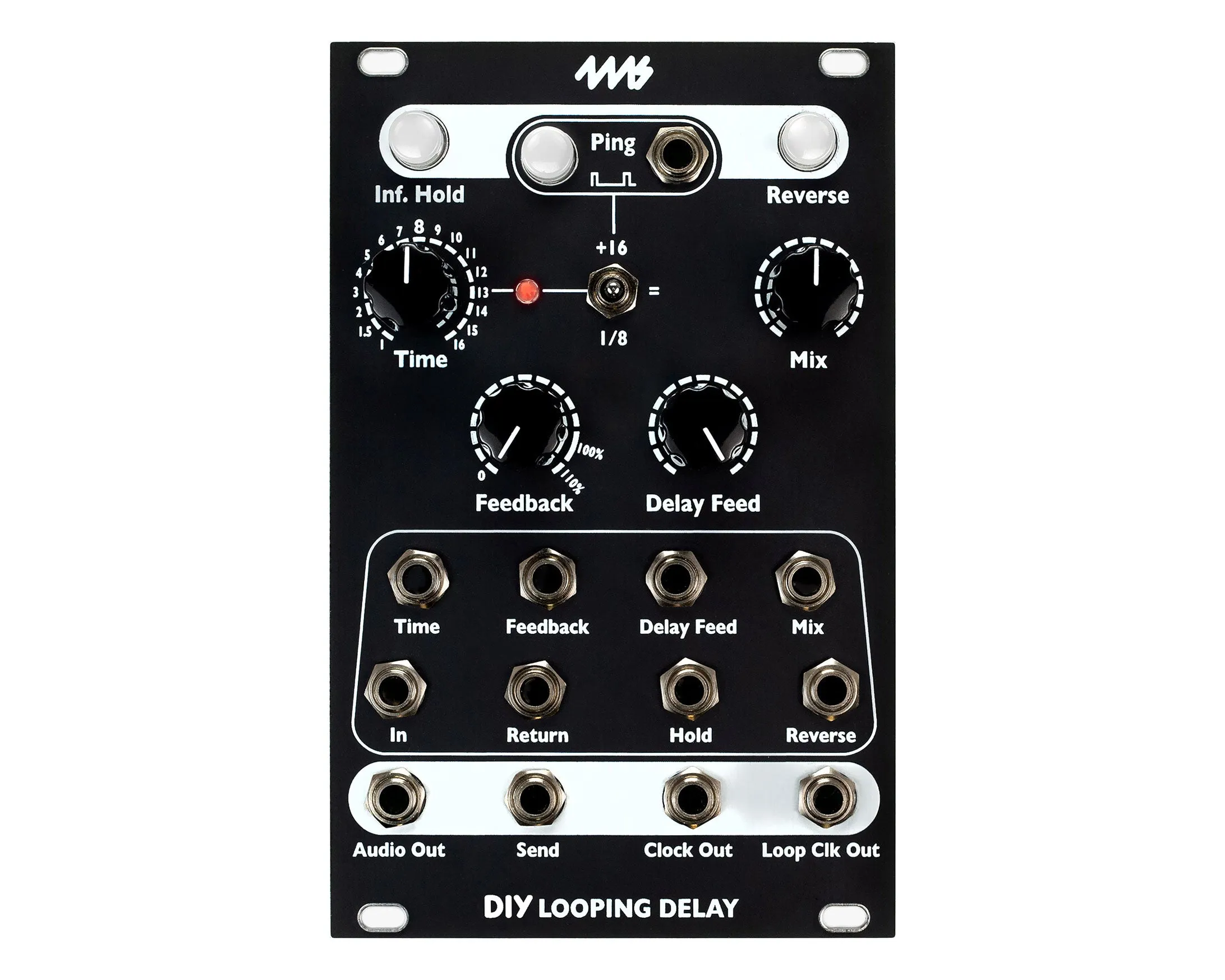

It's a Looping Delay module but you build it yourself!

16HP module that gives you crystal-clear clock-synced delay for loops up to 90 seconds, echoes, sound-on-sound, Karplus-Strong synthesis and more...

Features

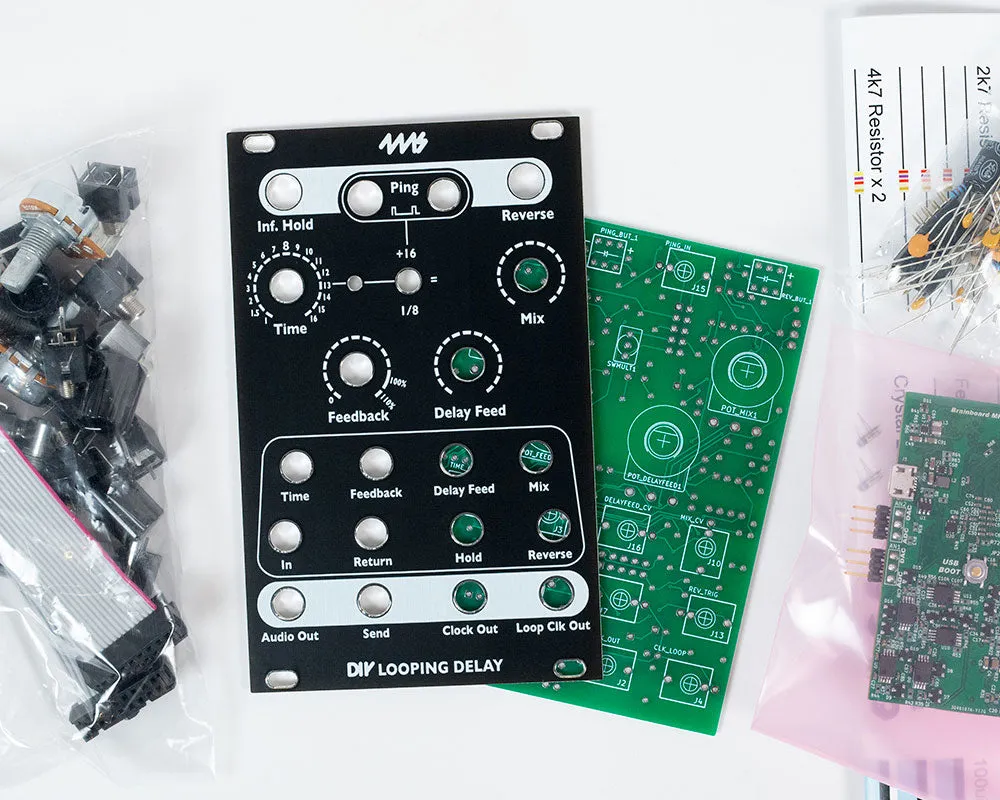

• Easy assembly: all through-hole components. No SMT or wiring
• Perfect kit for beginners and experts alike
• 48kHz, 24-bit low-noise audio: same hi-fidelity as other 4ms modules
• DSP chips and processor are pre-soldered onto a separate plug-in board
• Loop or echo time is synchronised to a clock
• 87 seconds of delay/loop time maximum
• 48kHz/24-bit sampling rate, loop recorded at 16-bit (24-bit optional)
• Extremely quiet, low noise and low jitter design
• Tap tempo button and clock Ping input set the basis for one "beat"
• Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
• Sample-accurate clock output for perfect synchronisation
• Loop clock output
• Time switches change range of Time knob from 1/8th notes up to 32 bars
• Digital feedback, up to 110%
• Delay Feed control, independent of dry/wet signal mix
• Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
• Reverse mode plays memory contents backwards
• With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
• Trigger inputs for toggling Infinite Hold and Reverse
• Send and Return for applying effects to feedback with external modules
• CV jacks to control Time, Level, Feedback and Dry/Wet Mix
• 16HP Eurorack module

Video:

Product Specs

• Item Number: 27781
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Made In: United States
• MPN: LD-KIT
