Note
When carrying a heavy Inductive load for a long period of time, the on-board MCU might be down and a reset procedure is needed.
The 4-Channel SPDT Relay HAT for Raspberry Pi utilizes four high-quality SPDT (single pole - double throw) relays and provides NO/NC (Normally Open/ Normally Closed) interfaces that can control the load of high current. This means it could be a nice solution for controlling devices that can't be directly controlled by the I2C bus. The standardized shield form factor enables smooth connection with a and it also has four LED indicators that show the on/off state of each relay.
Features
- High-quality SPDT (single pole - double throw) relays
- Compatible with Raspberry Pi 1/2/3/4
- I2C interface with three hardware SW1 (1, 2, 3) to select the fixed I2C-bus address
- Relay screw terminals for easy connection
- Standardized shield shape and design
- LED working status indicators for each relay
- COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
Specifications
Specification | Details |
---|---|
Power Supply | 4.75 ~ 5.5V |
Max Switching Voltage | 30VDC/ 250VAC |
Max Switching Current | 15A |
Frequency | 1Hz |
Dimensions | 91.2 x 56 x 32mm |

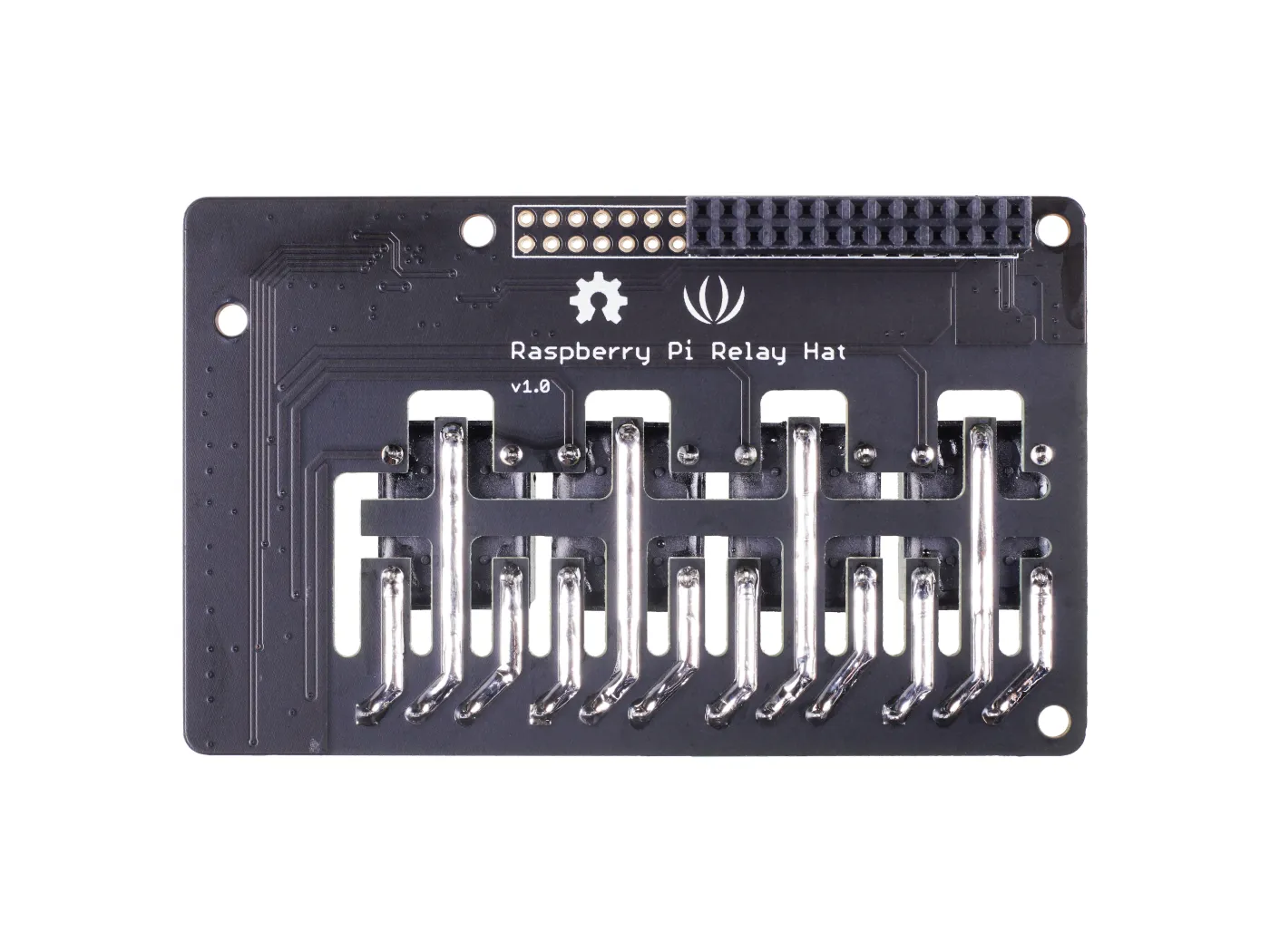

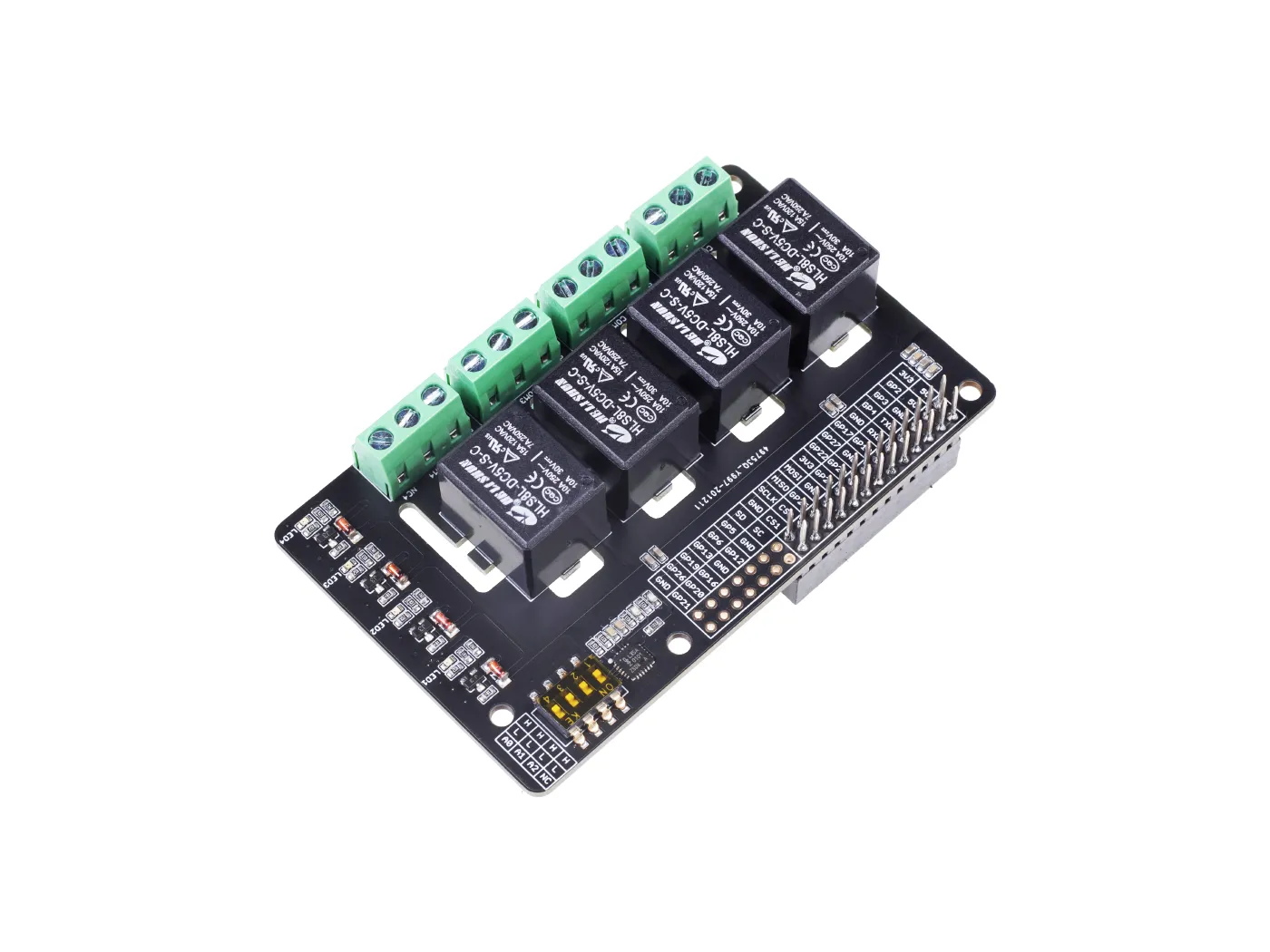

Hardware Overview
Part List
1 x 4-Channel SPDT Relay HAT for Raspberry Pi
ECCN/HTS
HSCODE | 8543709990 |
UPC |
